Automatic Inclinometer Automatic Inclinometer System for Deep Horizontal Displacement Monitoring
Automatic Inclinometer Automatic Inclinometer is a fully automatic measurement system designed for deep horizontal displacement monitoring. The complete system integrates automatic measurement, automatic lifting, automatic cable winding, automatic data transmission, automatic storage and automatic warning into one intelligent monitoring solution. The system consists of a GN-1 high-precision MEMS inclinometer probe, integrated control console, automatic winch box, inclinometer mobile App and data management cloud platform. It supports automatic measurement and control, helping users improve field measurement efficiency and reduce manual operation.
System Category
DL-SE
Signal Type
倾斜
Communication
Bluetooth, 4G, USB Disk
Application Fit
Typical applications for this product
Industrial Equipment Monitoring
Monitor rotating machinery and industrial equipment condition including vibration, torque, shaft power, rotational speed, shaft torsional vibration, and operational condition trends.
Typical configuration reference
Cultural Heritage Monitoring System
Monitor crack evolution, structural vibration response, tilt, displacement, long-term deformation, rock-mass fissure evolution, weathering-related structural degradation, stability trends, and environmental or human-activity impact for protected heritage assets.
Typical configuration reference
Civil Infrastructure Structural Monitoring
Monitor civil infrastructure deformation, strain, vibration, displacement, tilt, cracks, settlement, GNSS movement, cable force, seismic response, and construction-stage structural behavior.
Typical configuration reference
Research & Engineering Testing
Capture modal response, vibration response, dynamic strain, torque, speed, temperature, pressure, force, displacement, and synchronized multi-channel data for engineering verification.
Typical configuration reference
Product Media
Product views and demonstration
Product Image and Application Context

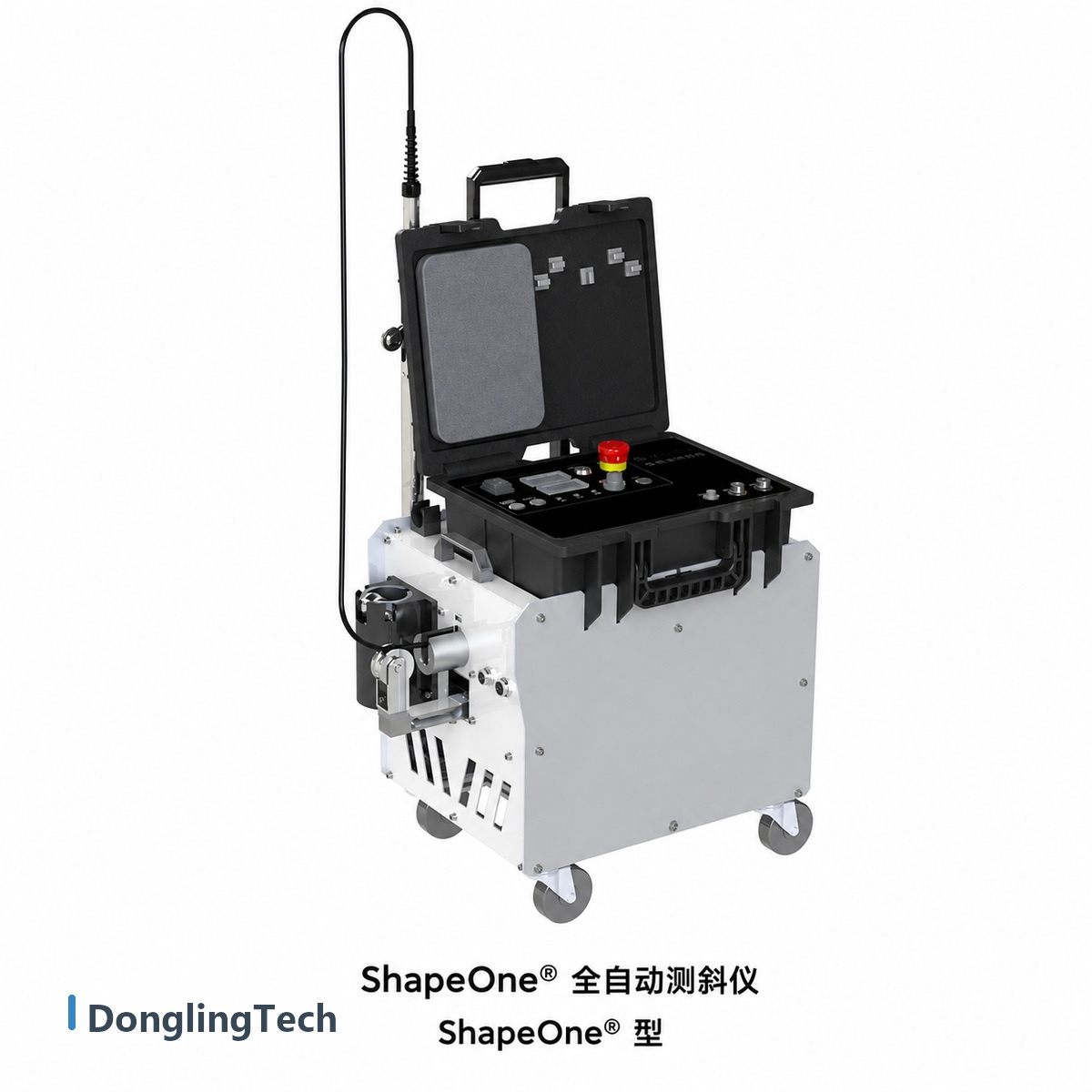

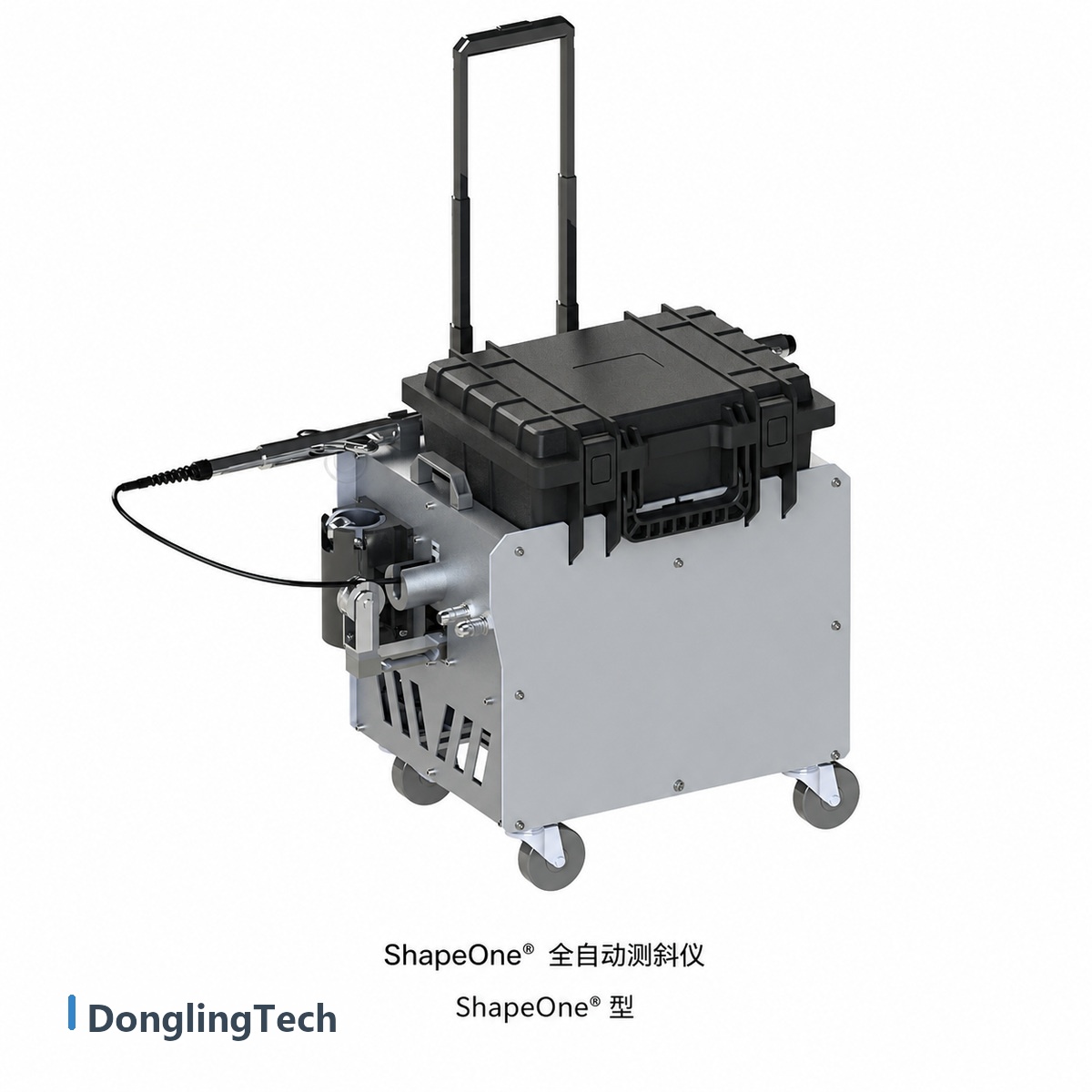

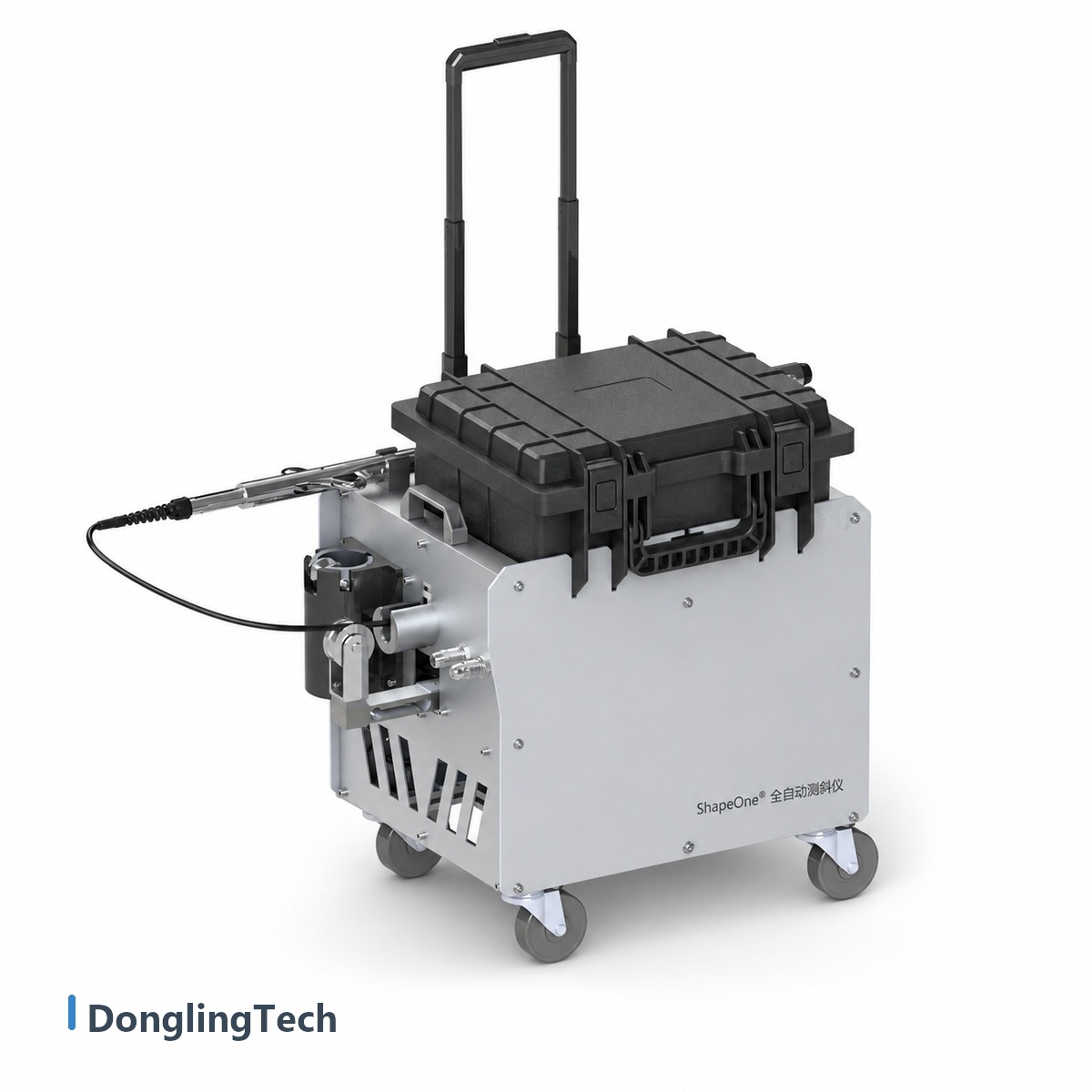

Visual reference for Automatic Inclinometer Automatic Inclinometer System for Deep Horizontal Displacement Monitoring
Product images are used when available for RFQ evaluation and product recognition.

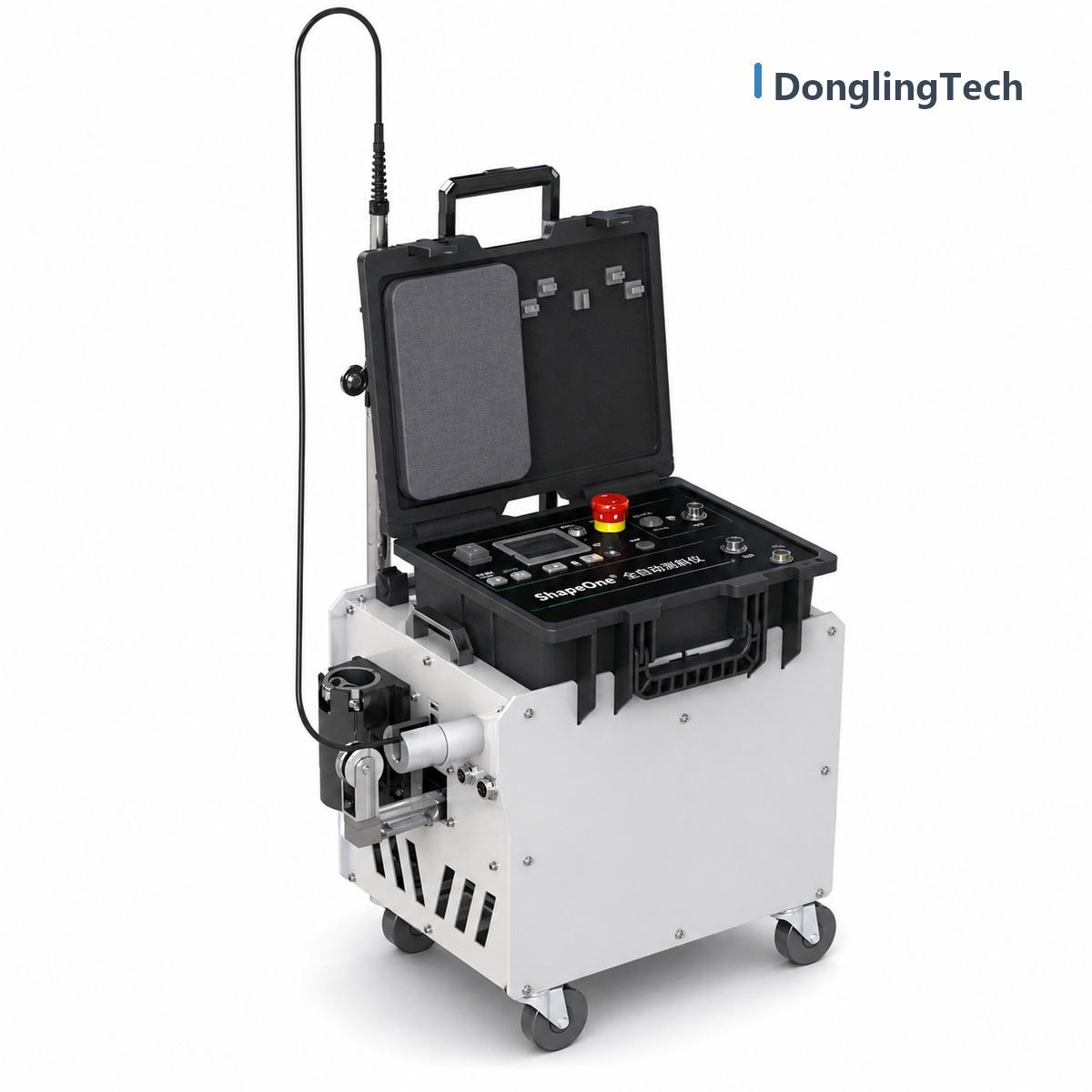

Primary Product Image
Product image configured for this product.
Application Context
Product image configured for this product.
Deep horizontal displacement monitoring
Typical project-specific installation deployment for project configuration.
Foundation pit deformation monitoring
Typical project-specific installation deployment for project configuration.
Slope monitoring
Typical project-specific installation deployment for project configuration.
Technical Specifications
Category
DL-SE
Measurement Range
Automatic Inclinometer System
Sampling Rate
Project-configured measurement cycle
Communication Protocol
Bluetooth, 4G, USB Disk
Protection Level
Application-specific enclosure
Power Supply
Lithium Battery / 220VAC
Application Tags
Deep horizontal displacement monitoring, Foundation pit deformation monitoring, Slope monitoring, Mine safety monitoring, Geological disaster monitoring, Bridge monitoring
Installation Type
Project-specific installation
Model NO.
Automatic Inclinometer
Product Name
Automatic Inclinometer System
Type
Fully Automatic Inclinometer / Deep Displacement Monitoring System
Measurement Object
Deep Horizontal Displacement
Main Components
GN-1 Probe, Integrated Control Console, Automatic Winch Box, Mobile App, Cloud Platform
Operation Method
Bluetooth Mobile App / Integrated Console
Data Transmission
Bluetooth, 4G, USB Disk
Cloud Protocol
MQTT Encrypted Protocol
Power Supply
Lithium Battery / 220VAC
Battery Capacity
20Ah / 24V
Runtime
>12h
Working Temperature
-10°C to +60°C
Storage Temperature
-30°C to +70°C
Storage Humidity
<=90%RH
Water Pressure Resistance
>=1MPa
Probe Output Signal
RS485
Probe Material
Stainless Steel
Supporting Software
Inclinometer Cloud Platform, Android Inclinometer App
Application
Slope, Foundation Pit, Hydropower, Mine, Geological Disaster, Bridge and Traffic Monitoring
Origin
China
Power Supply
Lithium Battery / 220VAC
Battery Capacity
20Ah / 24V
Communication Method
Bluetooth, 4G, USB Disk
Working Temperature
-10°C to +60°C
Storage Humidity
<=90%RH
Storage Temperature
-30°C to +70°C
Water Pressure Resistance
>=1MPa
Standby Current
Approx. 150mA
Runtime
>12h
Vibration Resistance
10~200Hz, 20g
Supporting Software
Inclinometer Cloud Platform, Android Inclinometer App
Supply Voltage
20~36V
Display
Dual Digital Display
Digital Display 1
Depth display, accuracy 0.01m
Digital Display 2
Measurement value display, accuracy 0.1mm
Housing Material
Engineering Plastic
Panel Material
Acrylic Plate
Waterproof Measure
Portable Rain Cover
Dimensions
380 x 310 x 180mm
Weight
5.5kg
Probe Diameter
28mm / 28mm
Wheel Base
500mm / 500mm
Engineering Applications
Where this DL product is applied
Fully automatic measurement, lifting, winding, transmission, storage and warning
Designed for deep horizontal displacement monitoring
Integrated control console, automatic winch box, GN-1 MEMS probe, mobile App and cloud platform
One-click automatic measurement through Bluetooth App
High-precision MEMS sensor, stable readings and fast response
Smart calibration, bottom detection and over-range detection
Sound and light status prompts with dual digital displays

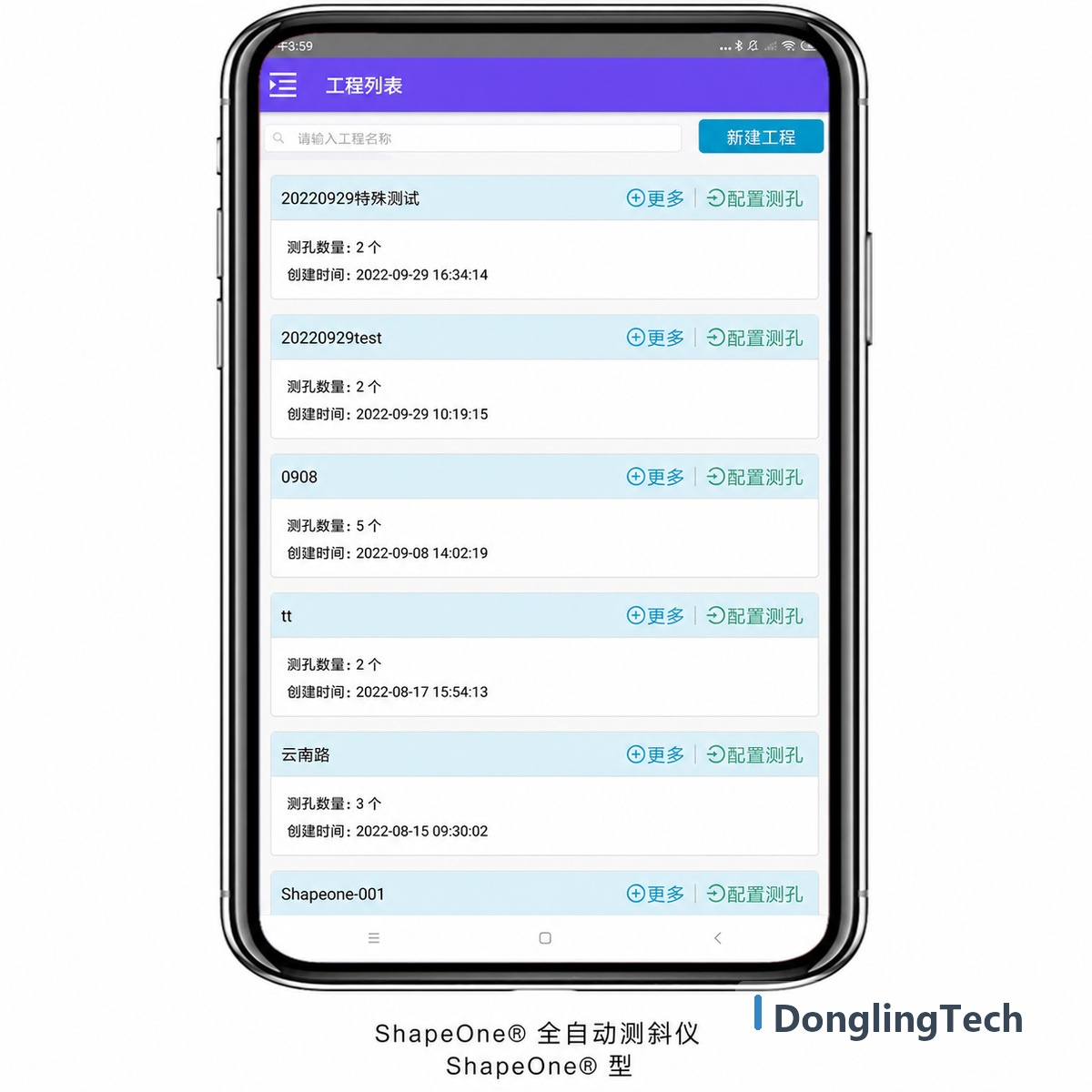

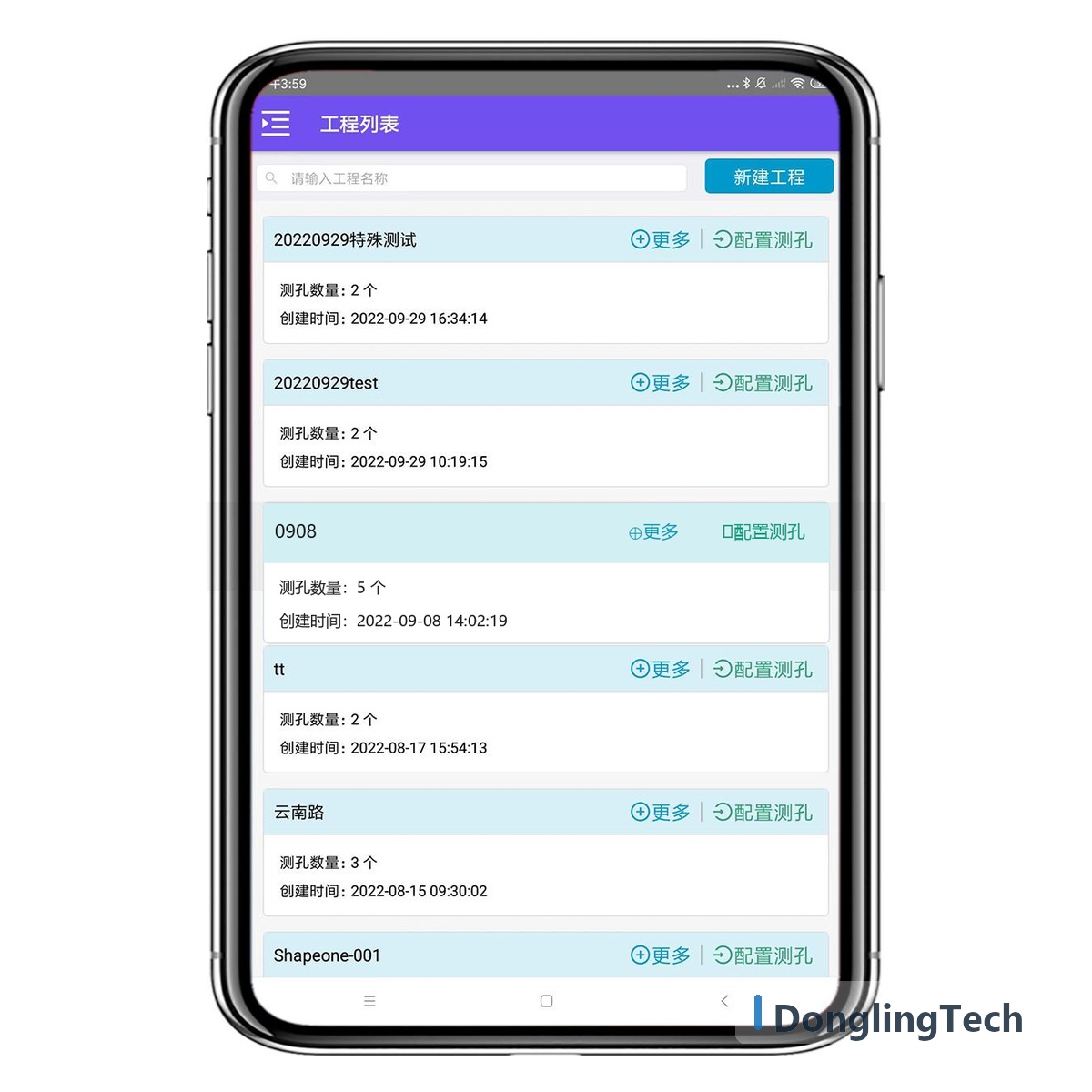

Real-time field viewing, charting and reporting through App
Typical Use Cases
Typical monitoring use cases
Deep horizontal displacement monitoring
Foundation pit deformation monitoring
Slope monitoring
Mine safety monitoring
Geological disaster monitoring
Bridge monitoring
Traffic engineering monitoring
Water conservancy and hydropower monitoring
System Integration Context
Sensor, DAQ, and software context
Confirm measurement range, cable length, mounting accessories, environmental conditions, and output interface before quotation.
Match the sensor or acquisition unit with the project data logger, communication gateway, power design, and monitoring platform.
Final configuration and calibration requirements are confirmed against the monitoring point schedule.
